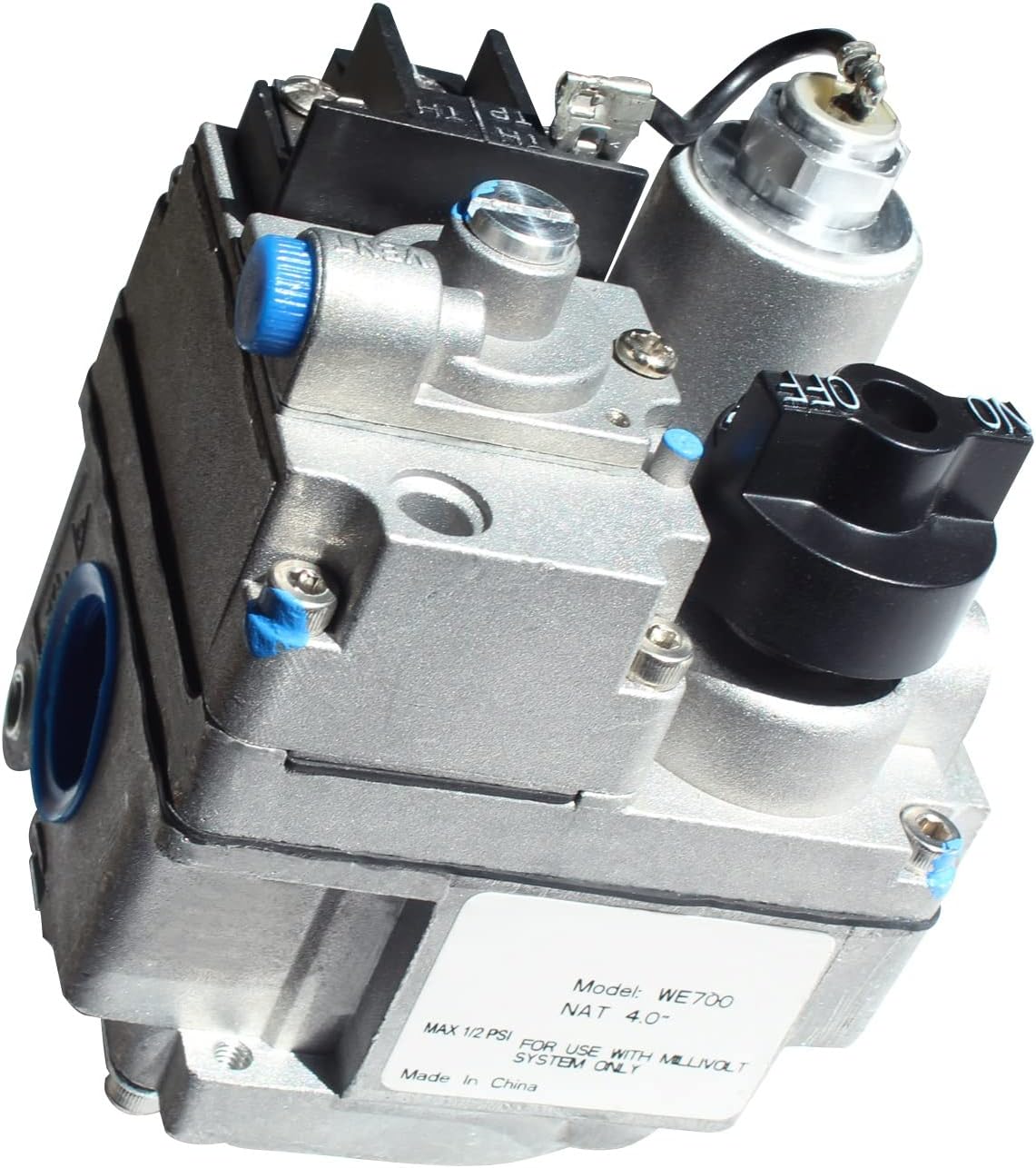

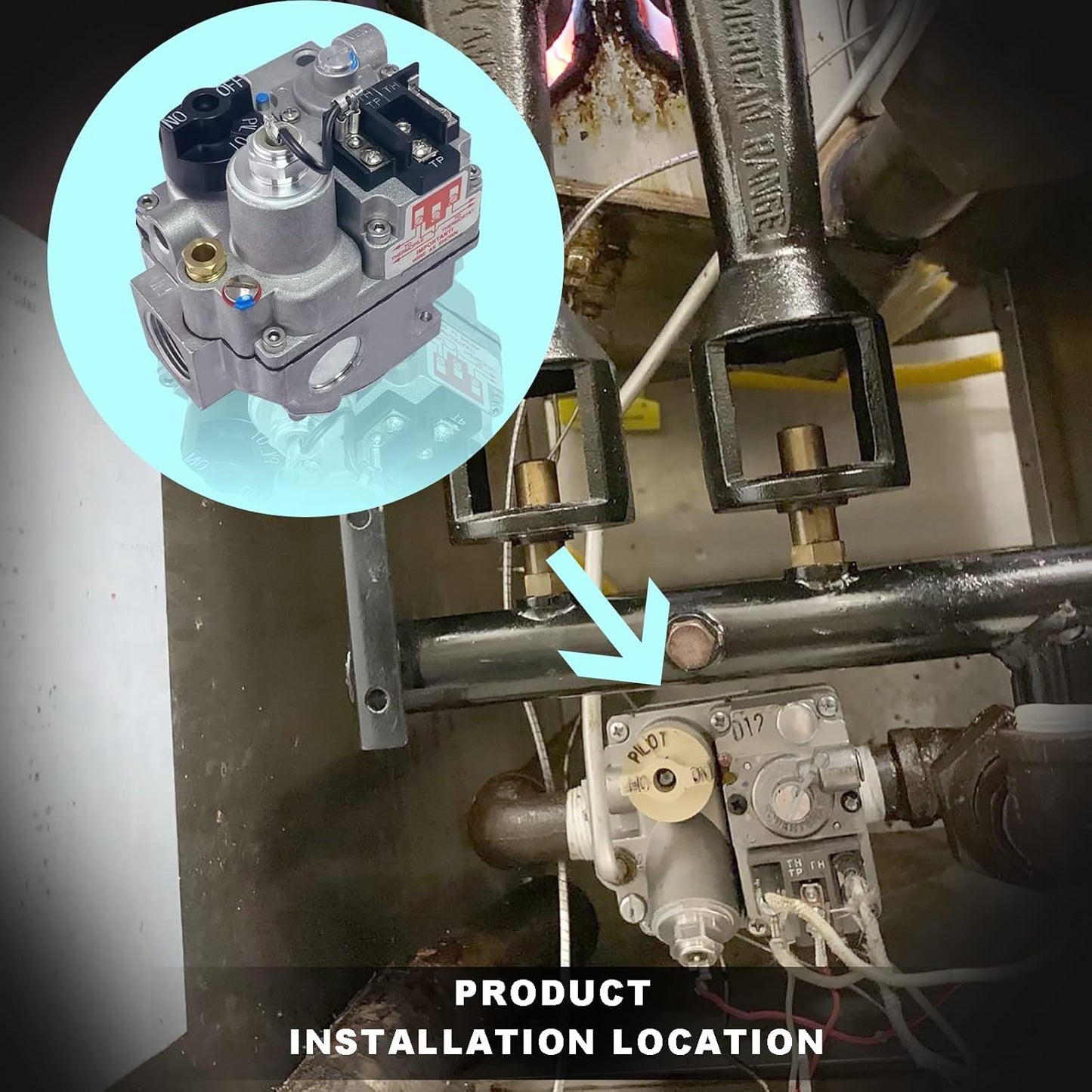

MENSI 700-506 Millivolt Gas Valve Replacement for Robertshaw 700 Series, 200,000 BTU/H Fast Opening, Compatible with Millivolt Combination Valve -Natural Gas

Name: MENSI 700-506 Millivolt Gas Valve Replacement for Robertshaw 700 Series, 200,000 BTU/H Fast Opening, Compatible with Millivolt Combination Valve -Natural Gas
Brand: MENSI
Price: 99.99 USD
Availability: InStock

$99.99 USD

Sale Sold out

Product variants

Quantity

Millivolt Safety Gas Valve: Operates within a range of 250 to 750 millivolts, ensuring precise control and safety
Compatibility: Direct replacement for Robertshaw 700-506, 700-503, 700-502, and 700-504 gas valves. It is also compatible with swimming pool furnace combination gas valves
Flow Capacity: Supports an inlet pressure of 7" to 13.8" WC natural gas (Water Column) and an outlet pressure of 4" ± 0.3" WC. The flow rate is optimized for 180,000 to 360,000 BTU

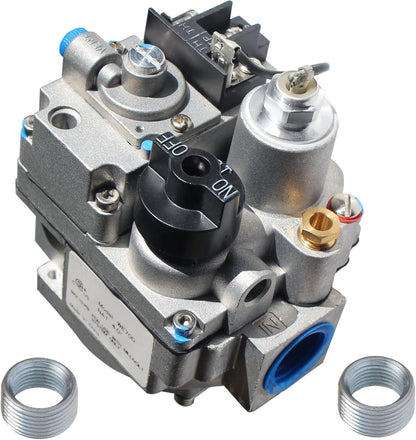

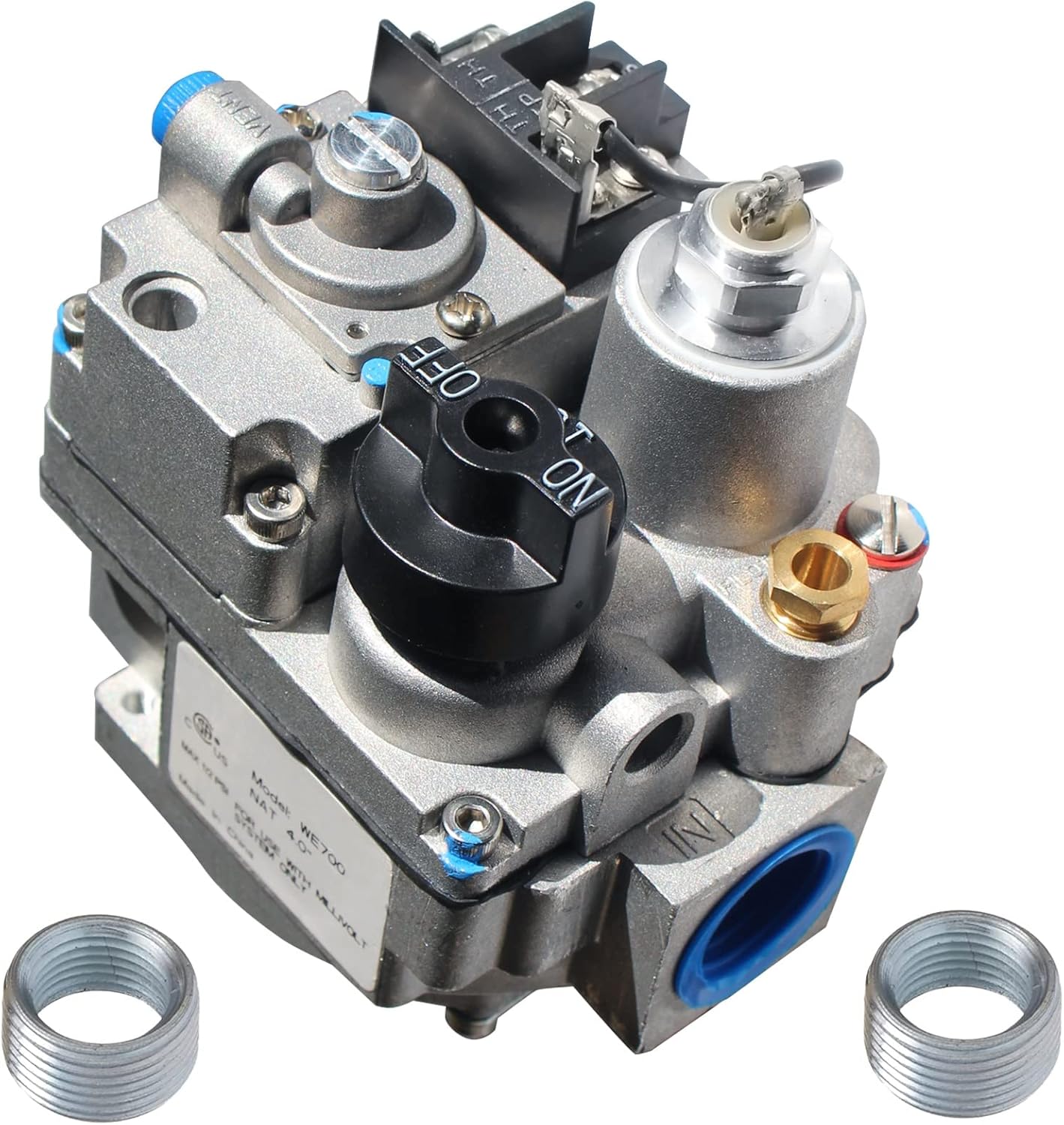

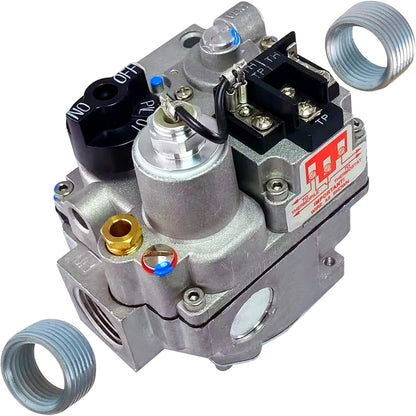

Easy Installation: Features 3/4"-14 NPT female threads for inlet and outlet connections. Includes two 3/4” x 1/2” reducer bushing kits for seamless pipe mounting

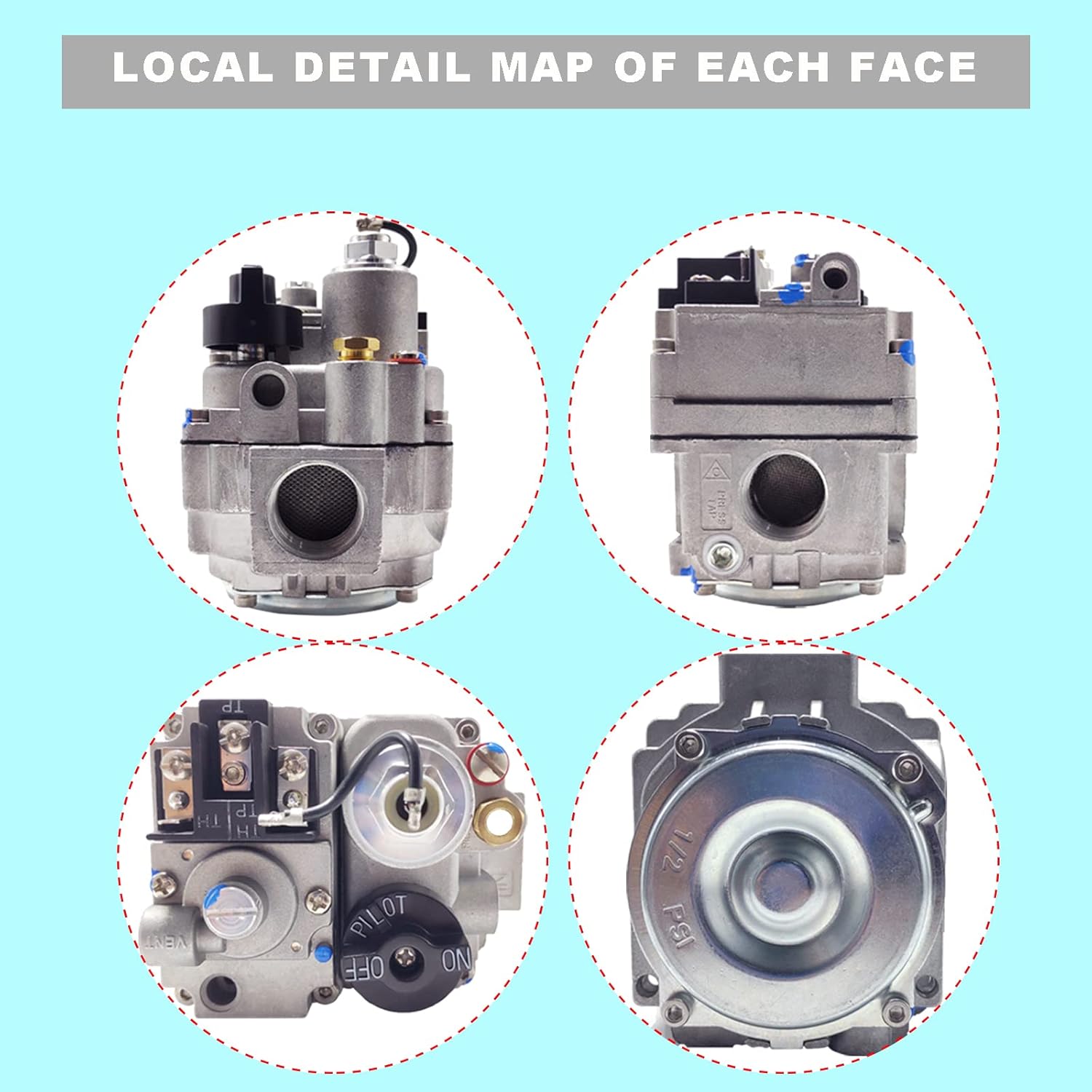

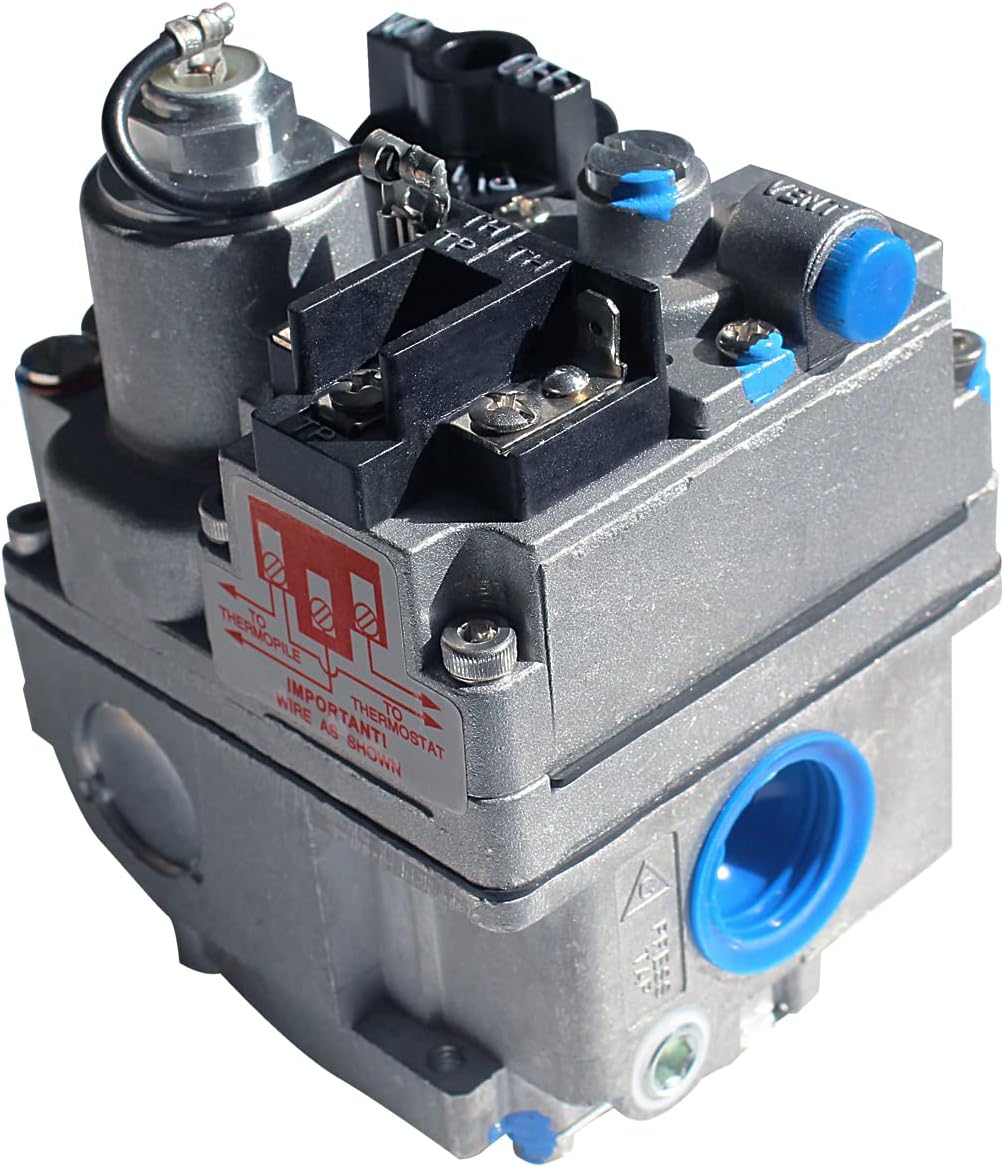

Standard Features: 1/4” tubing pilot outlet.Pilot gas filter. Pilot adjusting key with dial markings (Off - Pilot - On).NEMA-standard terminals for easy wiring

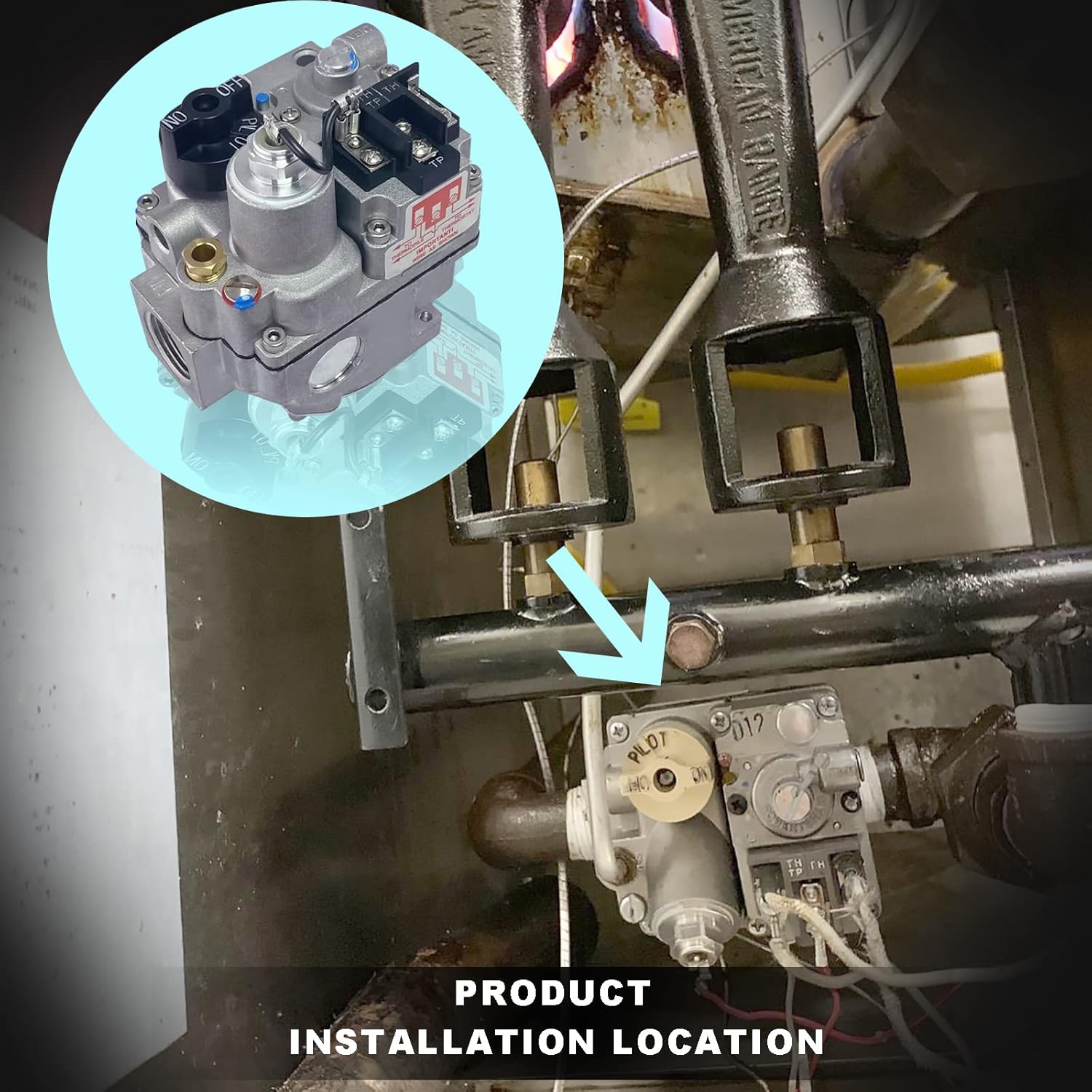

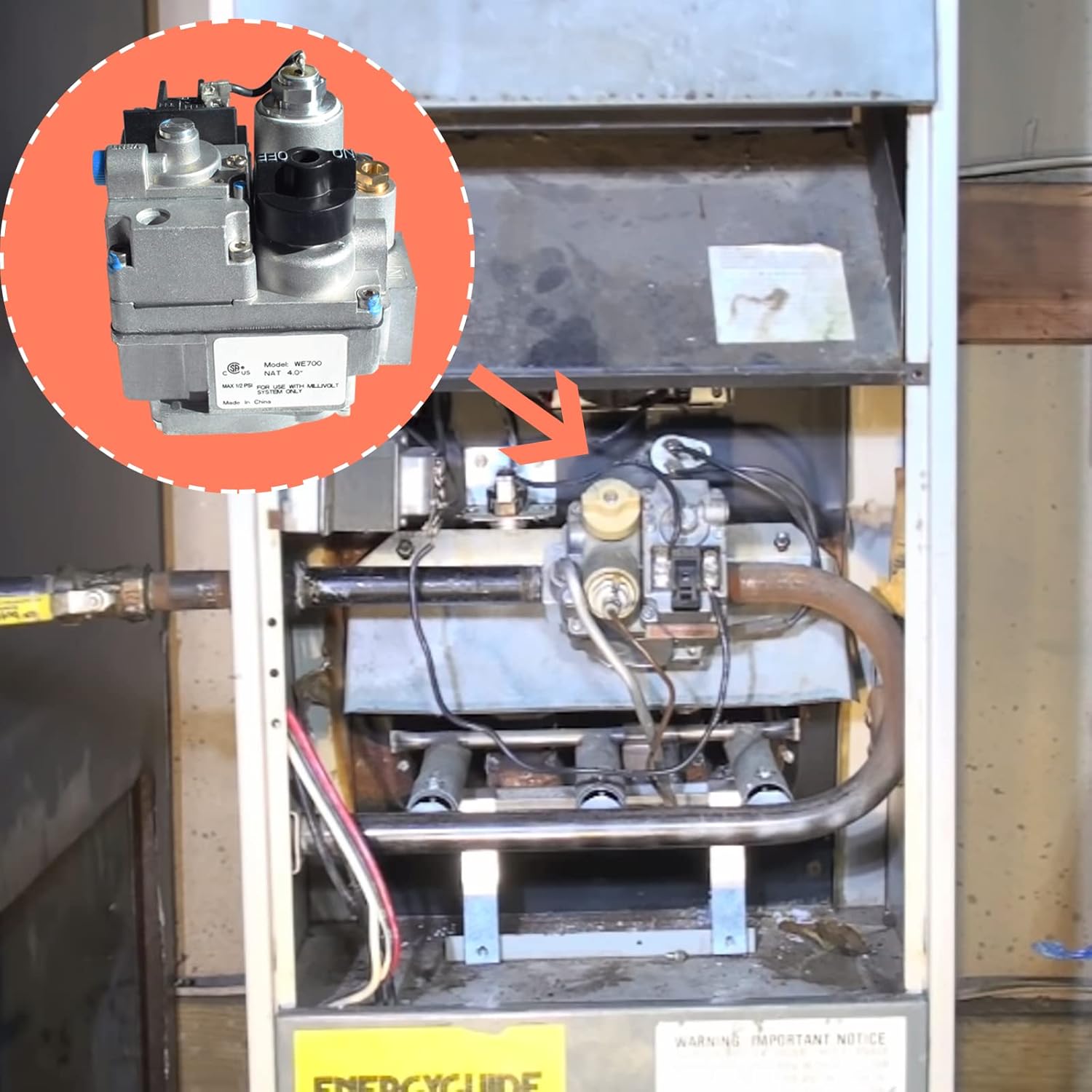

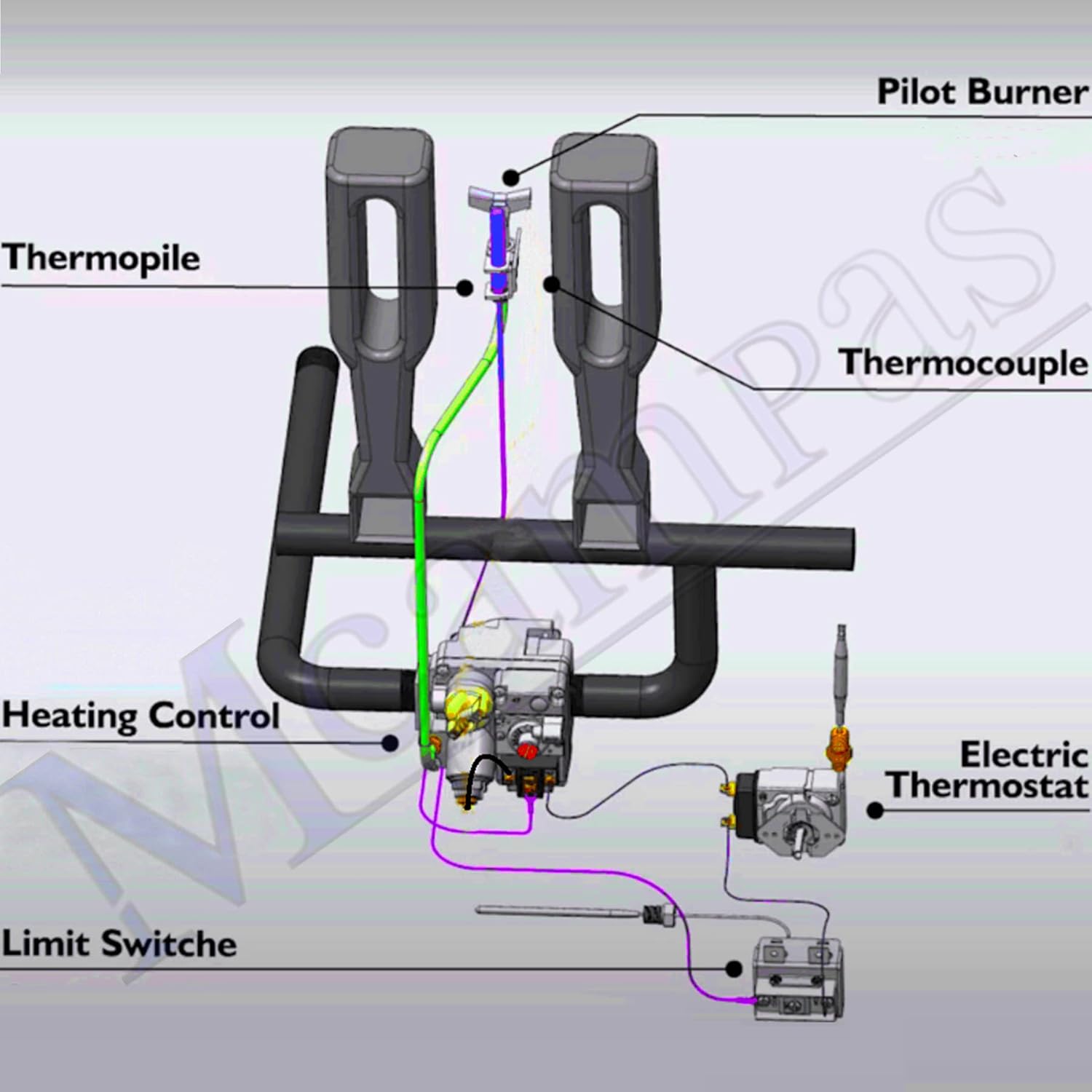

Applications: Designed for millivolt gas systems actuated by wall thermostats; Works with pilot burners, thermopiles, electric thermostats, and hi-limit switches; Suitable for gas fryers, furnaces, and other natural gas appliances
Compatibility: Compatible with Robershaw 700-506 gas valve, Robershaw 700-503 millivolt gas valve, Robertshaw 700-502 combination gas valve, Robertshaw 700-504 Millivolt Combo Gas Valve. also replacement for the swimming pool furnace Combination Gas Valve
Replacement Parts: 700-506 Natural Gas Valve is a trusted solution for maintaining the efficiency and safety of your gas-powered systems. Whether for gas fryers, furnaces, or other heating applications, this valve delivers consistent performance and ease of use
